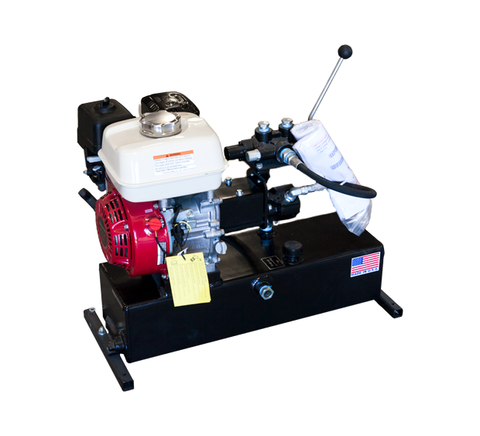

Gas Powered Hydraulic Pump | GP1-DA

Gas Dump Trailer Hydraulic Power Unit

Part Number GP1-DA

NOTE: System is rated @ 3000 psi working pressure. All Units are 100% tested and R.P.M. and pressure settings are done at the factory.

Please contact us if you have any questions we can assist you with.

Toll-Free U.S. 1 (866) 934-0777 or Outside the U.S. call! Toll-Free U.S. 1 (903) 455-7777

Specifications

• G/C Gas powered Hydraulic Power Unit with the following design features and characteristics.
• Model GC-160 Honda Engine, Recoil Start
• 5-Gallon Hydraulic Reservoir
• Single-Stage Gear Pump, 2 G.P.M. Displacement
• Sight / Level Gauge
• Filler / Breather Cap Assembly
• Return Line Filter, 10 Micron Element
• 4-way, 3-position Manually-Operated Directional Control Valve, Tandem Spool, Spring to Center. Control Valve includes an Adjustable Relief Valve. Control Valve will be mounted and the Pressure and Return Line will be Plumbed.
